AUTOMATED NUCLEIC ACID EXTRACRION SYSTEM

Extremely simple workflow   easy operated system low maintenance UV disinfection SPECIFICATIONS Instrument model – S12C Sample type – Serum, plasma, whole blood, secretions, exfoliat

Categories:

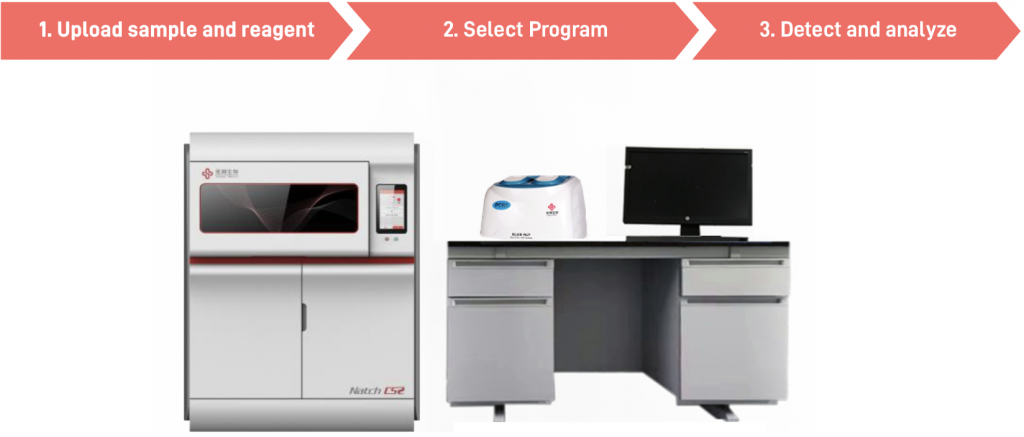

Extremely simple workflow



easy operated system

low maintenance UV disinfection SPECIFICATIONS Instrument model – S12C Sample type – Serum, plasma, whole blood, secretions, exfoliated cells, tissues, nasopharyngeal swab, oropharyngeal swab, urine, feces, etc. Sample tube specifications – Compatible with various original sample tubes Extraction Principle – one-tube fast release technology (OT) Advanced magnetic beads technology (MB) Sample type Volume – OT: 1-96 tests/batch; MB: 1-48 tests/batch Extraction Time – OT of 96 tests ≤ 40 minutes; MB of 48 tests ≤ 100 minutes Pipetting range – 10~1000 μL Level detection – Pressure detection / capacitance detection, automatic detection of liquid level Clot detection – Pressure detection, automatic detection of liquid aspiration and liquid clogging Sample loading function – Automatic liquid level detection Clot detection Tips detection Air-prof detection Magnetic field control – Permanent magnet mode Lift-type magnetic separation module Blending mode – Vortex omnidirectional liquid mixing

Features

1. Efficient anti-contamination

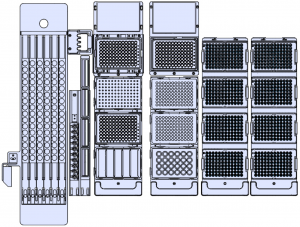

  • Well-organized countertop layout
  • Sample area is separated from clean area
  • Effective UV decontamination
  • Anti-contanmination function of moving path

2. Super magnetic, effective adsorption

  • Super 3-D magnetic adhesion technology
  • Permanent magnetic mode

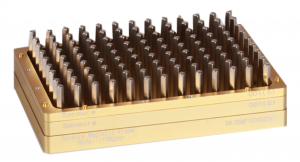

  • 117 magnetic racks, 4 magnetic bars in each well

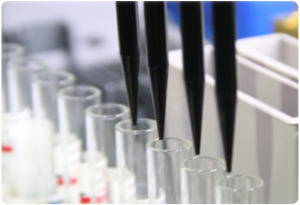

3. Excellent sample addition function

  • Automatic liquid level detection
  • Clot detection
  • Tip detection
  • Air-prof detection

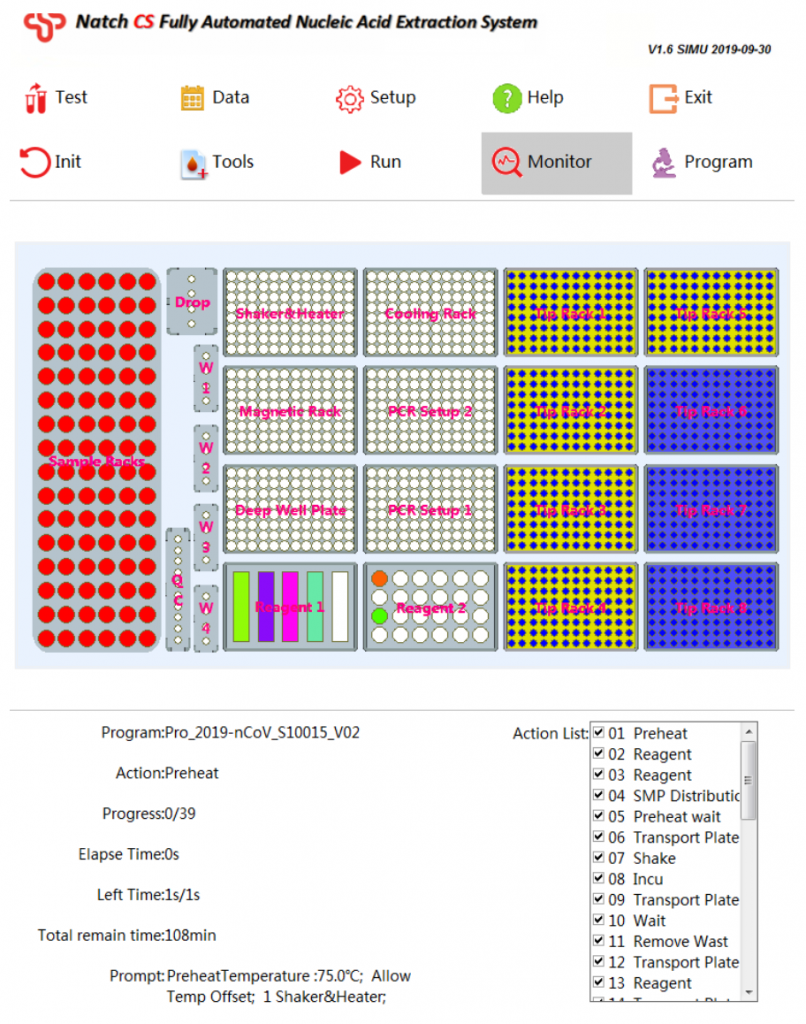

4. Easy-to-use software

  • Preset programs, one-key selection
  • Prompt the placement of reagents
  • Display the status of reagents and consumables
  • Real-time display of remaining time
  • Show real-time experimental procedures
  • Permits LIS compatibility

Specifications

Instrument model S-S13A
Sample type Serum, plasma, whole blood, secretions, exfoliated cells, tissues,
nasopharyngeal swab, oropharyngeal swab, urine, feces, etc.
Sample tube specifications Compatible with various original sample tubes
Extraction Principle one-tube fast release technology (OT)
Advanced magnetic beads technology (MB)
Sample type Volume OT: 1-96 tests/batch;
MB: 1-96 tests/batch
Extraction Time OT of 96 tests ≤ 30 minutes;
MB of 96 tests ≤ 90 minutes
Pipetting range 10~1000 μL
Level detection Pressure detection / capacitance detection, automatic detection of liquid level
Clot detection Pressure detection, automatic detection of liquid aspiration and liquid clogging
Sample loading function Automatic liquid level detection
Clot detection
Tips detection
Air-prof detection
Magnetic field control Permanent magnet mode
Patented design
Super 3-D magnetic adhesion technology
Blending mode Vortex omnidirectional liquid mixing
Temperature control range Adjustable from room temperature to 100℃
UV disinfection Timed opening and closing
Barcode Scanning Sample scanning system
Supported multiple barcodes
Language Simplified Chinese / English
Display Method 10.4 inches touch screen
Communication Interface USB, RS232, network ports, HDMI
Dimensions and Weight 1320×850×1600mm (LxWxH), weight: 350Kg
Power supply Input: AC 100-240V 50/60Hz 350 VA
Qualification CE

Extraction Kit Components

No. Spec. Product Name
S1013E 48T/kit Sample Release Reagent
S1014E 24T/Kit, 48T/kit Sample Release Reagent
S1002E 24T/kit Nucleic Acid (DNA/RNA) Extraction or Purification Kit
(Magnetic beads method)
S1006E 48T/kit Multi-type Sample DNA/RNA Extraction-Purification Kit
(Magnetic beads method)
S10016E 48T/kit Nucleic Acid Extraction-Purification Kit
(Magnetic beads method)
